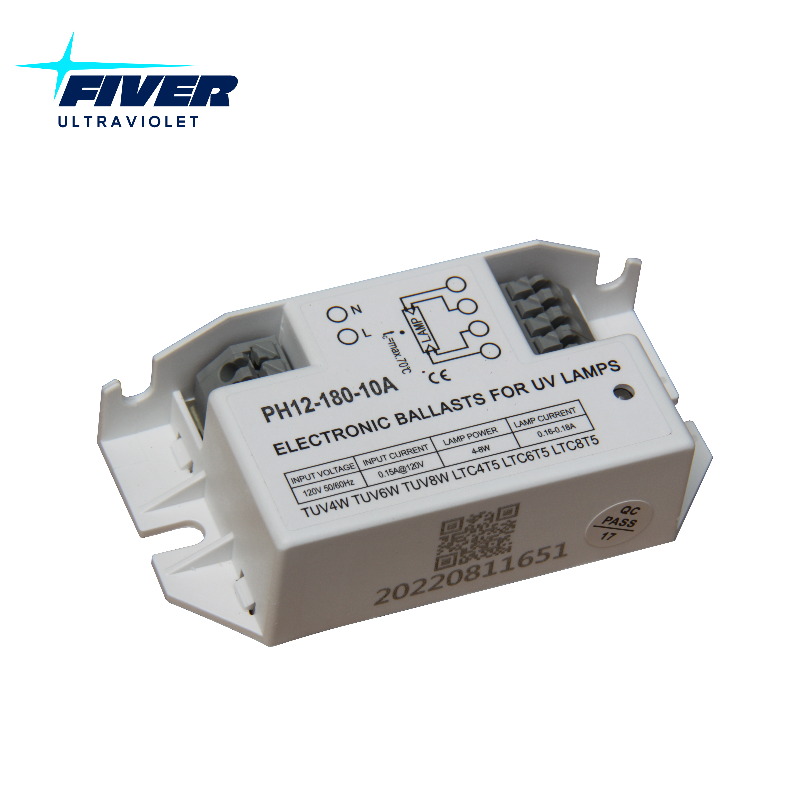

110V 4-10W Electronic UV Ballast Replacement for Water treatment
110V 4-10W Electronic UV Ballast Replacement for Water treatment
Product Parameters:
| Operating Voltage Range | 99-132 |
| Max Input Power | 10W |
| Max Input Current | 0.18A @ 110V |
| Lamp Power | 4-10W |
| Lamp Current | 0.15-0.20A |
| Operating Frequency | 50-70KHZ |
| Preheat Time | 0.6-1.0 S |
| Preheat Current | 0.2-0.3A |
| Power Factor | ≥ 0.55 |
| Total Harmonic Distortion | <15% |
| Crest Factor | <1.7 |
| Ambient Humidity | 5%-85% |
| Ambient Temperature | -15-40℃ |
| Max Case Temperature | 70℃ |
| Case Material | Thermal Plastic |
Compatibale Lamp Types
This 4-10W UV light ballast is compatibale with following germicidal uv lamps, and widly used in drinking water purification, air disinfection, surface disinfection and so on.
PHILIPS: TUV4W/TUV6W/TUV8W/TUV10W
PLS-5W(4P)/PLS-7W(4P)/PLS-9W(4P)
LIGHT TECH: LTC4T5/LTC6T5/LTC8T5
ALTERNATIVES:
Advantages of the Electronic UV Ballast:
1> Energy efficient. cosuming 30% less electircity comparing to traditional magnetic ballasts.
2> Compact is zise, electronic ballast is smaller in size and lighter in weight.
3>Longer service life. less light output depreication longer service life. lower maintanence cost.
4> Stable operation and better control over light output.
5> Preheat start suitable for applications needs frequent start and stop. swithing cycles up to 50000 times

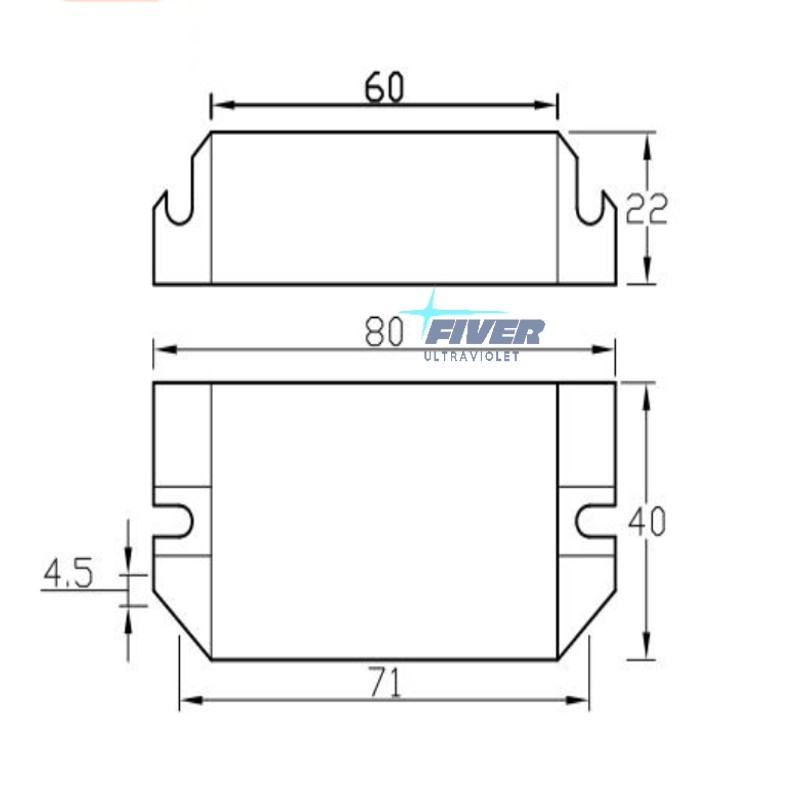

Dimension
Size: 80*40*22MM Carton Size:460*280*140 (100PCs Load)

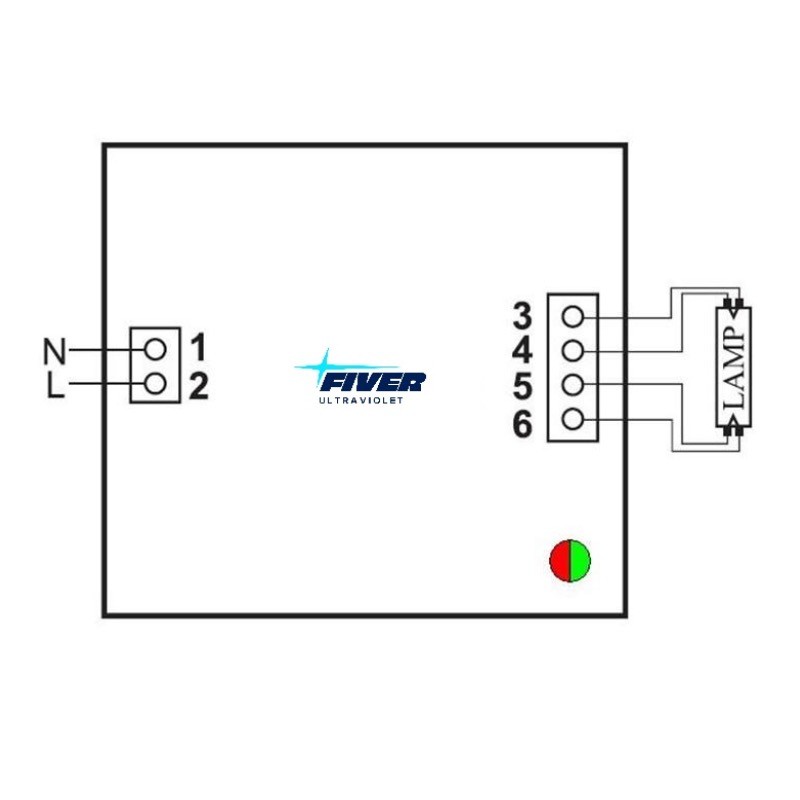

Wiring Diagram
Suggested Cable Spec: Copper wire diamter 0.5-1.0mm
Cautions
1. Please make sure the power is off when you install or maintain the ballast
2. The distance between ballast and lamp tube should no longer than 5M.
APPLICATIONS
Certificates
