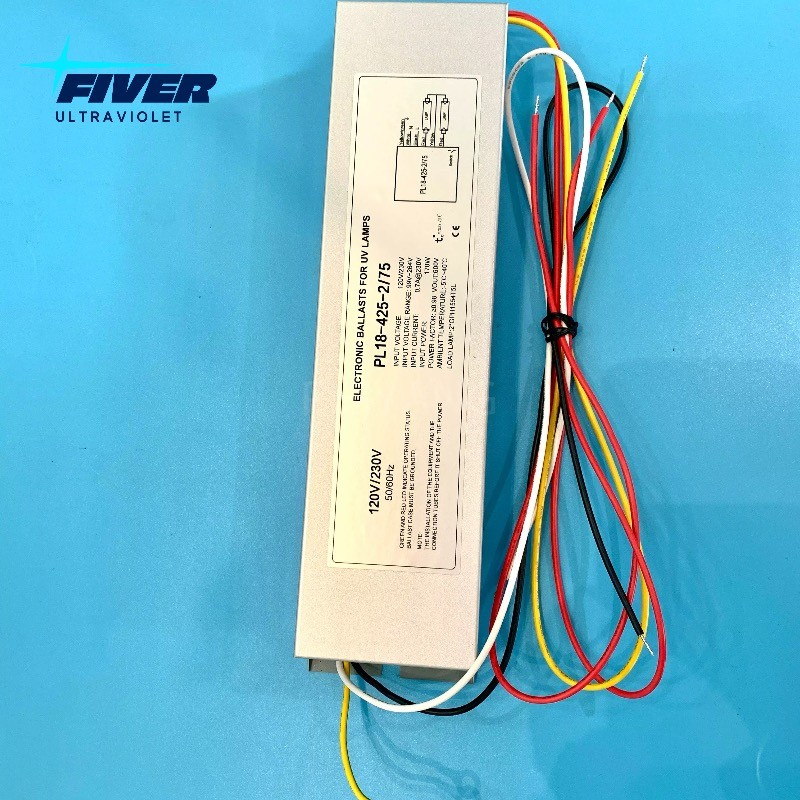

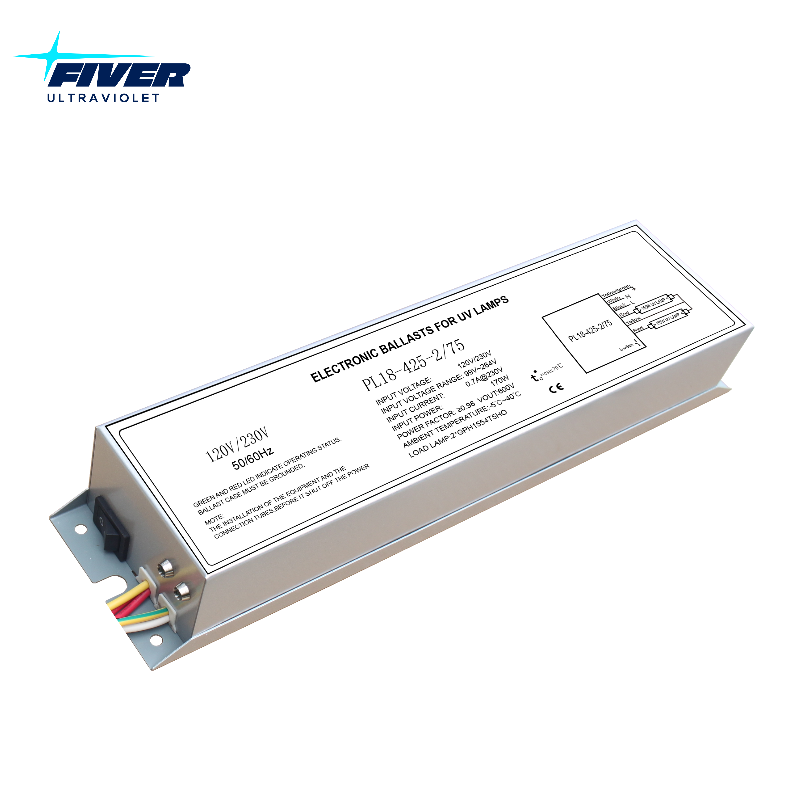

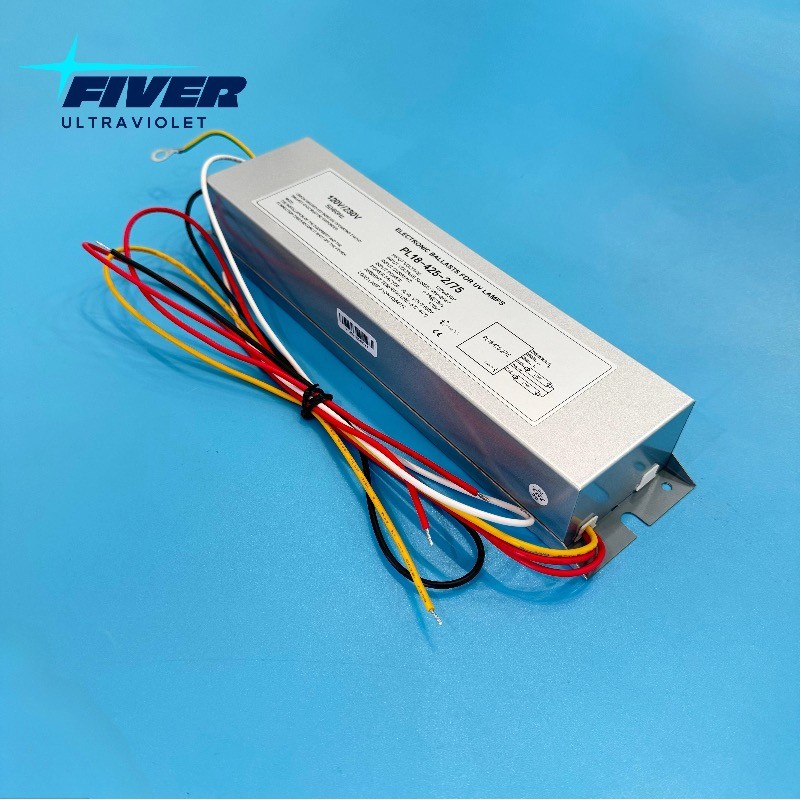

2*75W UV Light Ballast to Replace Aquafine 16518-3
2X75W UV Light Ballast to Replace Aquafine 16518-3
Upgrade your UV disinfection system performance with our PL18-425-2/75 UV Light Ballast – the ultimate 2*75W UV Ballast engineered for reliability, efficiency, and seamless integration. Designed as a premium Aquafine 16518-3 Replacement, this industrial-grade Low Pressure UV Lamp Driver delivers unmatched performance in water treatment, and disinfection applications.
Parameters of Fiver's 2*75W UV Ballast
| Start Mode | Instant Start |
Operating Voltage Range | 99-264V |
Max Input Power | 165W |
Max Input Current | 0.73A@230V, 1.56A@110V |
Lamp Power | 2*75W UV Lamps |
Lamp Current | 0.38-0.43A |
Operating Frequency | 40-70KHZ |
Power Factor | ≥ 0.98 |
Efficiency | >90% |
Total Harmonic Distortion | <15% |
Crest Factor | <1.7 |
Ambient Humidity | 5%-85% |
Ambient Temperature | -15-40℃ |
Max Case Temperature | 70℃ |
Case Material | Aluminum Shell |
Safety Norm | EN61347-1-2-3, EN62493 |
LVD Norm | Low voltage Directive 2014/35/EU |
EMC Norm | EN55015, EN55014, GB17743, GB17625, EN61000-3-2 |
Certificates | CE/UL/CCC |
Features of Fiver's PL18-425-2/75 UV Light Ballast to Replace Aquafine 16518-3/Aquafine 16518-1
✅ Universal Power & Maximum Efficiency
Wide Voltage Support: Operates flawlessly at 120V/230V (±15%) with 50/60Hz frequency – ideal for global installations
Energy Savings: >90% conversion efficiency & power factor correction (PF>0.98) reduces energy costs by 15-30% vs. standard ballasts
True Aquafine 16518-3 Replacement: Direct drop-in compatibility – no wiring modifications needed
✅ Optimized UV Output Performance
Drives 2× UV lamps (GPH1554T5/G64T5/TUV64T5 compatible) at precise 0.38–0.43A current
Instant-start technology eliminates warm-up delays – critical for UV curing processes
Stable UV output across power fluctuations (±15% voltage variance)
✅ Industrial Durability & Smart Monitoring
IP64 Metal Housing: Dustproof/moisture-resistant construction withstands harsh environments (water treatment plants)
Extended Operating Range: -5°C to 40°C with 85% humidity tolerance
LED Diagnostics: Green operational indicator enables instant lamp status checks
Perfect For
Municipal/Industrial Water Treatment Plants
Aquafine® UV System Owners Needing 16518-3 Ballast Replacements
Facilities Requiring Low Pressure UV Lamp Drivers for T5 HO Lamps
Upgrade to Smarter UV Power: Maximize lamp life, minimize downtime, and slash energy bills with the industry’s most advanced 2*75W UV Ballast. Compatible with Aquafine 16518-3 systems and engineered to outperform legacy ballasts like the Aquafine ballast 16518-1.
