1554mm T6 320W High Power Amalgam UV Lamp for Municipal Wastewater Treatment

1> Fiver's Amalgam UV lamps are CE & RoHS certificated.
2> Over 30 years experience in UV lamp manufacturing.
3> Strictly adhere to the requirements of the ISO 9001 quality management system
4> Each lamp undergoes rigorous testing at the factory to guarantee a 100% pass rate.
5> 1 year warranty, lamp life up to 16000 hours.
6> Sample orders are available for your evaluation.
7> Fast delivery, sample orders within 7 days, bulk orders within 30 days.
8> OEM & ODM service available.

INQUIRY

Product Details

Product Tags

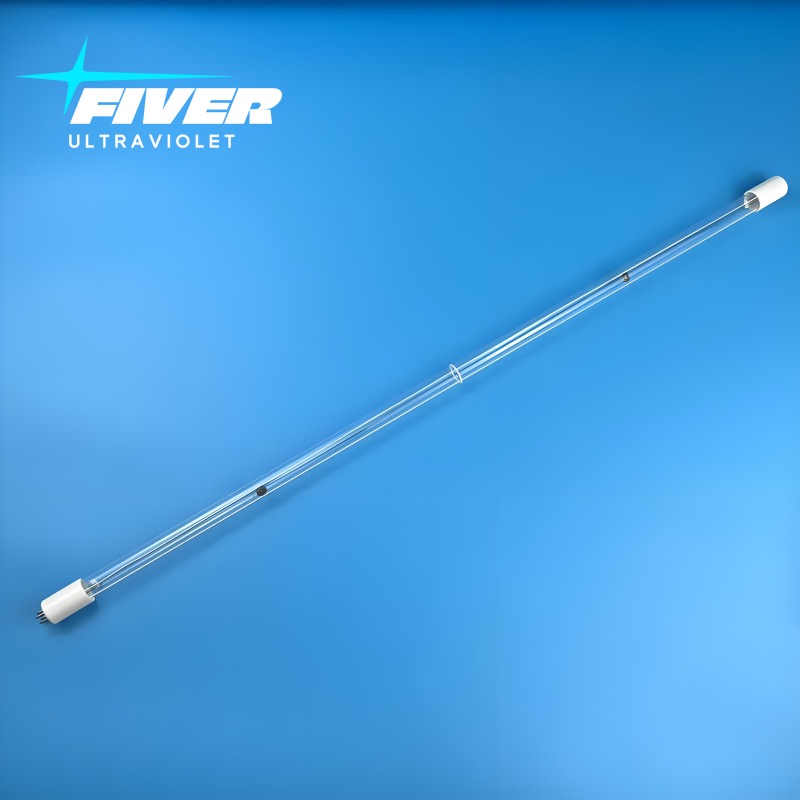

Long Lifespan 1554mm T6 320W High Power Amalgam UV Lamp for Municipal Wastewater Treatment

Long Lifespan 1554mm T6 320W High Power Amalgam UV Lamp for Municipal Wastewater Treatment.jpg

Fiver's 1554mm T6 320W High Power Amalgam UV Lamp is a high-efficiency ultraviolet disinfection lamp specifically designed for municipal wastewater treatment. Utilizing advanced amalgam technology, this product emits ultraviolet light at a wavelength of 254nm, offering advantages such as high sterilization efficiency, eco-friendliness, energy savings, long lifespan, and stable output. It is suitable for various applications, including large-scale wastewater treatment plants, small-scale treatment stations, and reclaimed water treatment.

Parameters for the 320W UV Sterilization Lamp

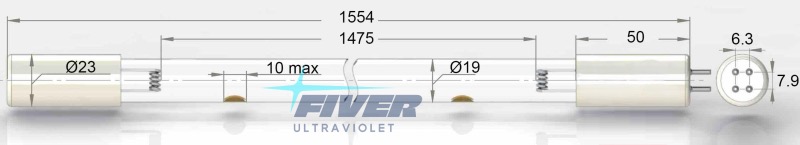

Amalgam UV Lamp GPHHA1554T6L-GPHHVA1554T6L Specifications.jpg

Model NO.	GPHHA1554T6L	Wavelength	254nm UV-C
Specification	T6, 1554mm	Tube Material	Quarts
Certification	CE, RoHS ISO9001	Wattage	320W
Life Span	16000hrs	Lampbase Material	Ceramic
UV Output at 254nm (uW/Cm2)	750uw/Cm2	UV Output at 254nm (W)	105W
Lamp Current	2.1A	Lamp Voltage	154V
BF-Eol	1554mm	Transport Package	Plywood/Carton
Trademark	FIVERUV	Origin	China
HS Code	853949000	Production Capacity	30000/Day

Features for the UV Disinfection Lamp for Municipal Wastewater Treatment

✅ Powerful & Reliable Water Sterilization:

Advanced UV Sterilization: Our system utilizes a high-power 320W amalgam UV lamp (1554mm T6) to effectively eliminate a wide range of harmful microorganisms in your water, including bacteria, viruses, and fungi. This broad-spectrum disinfection is even effective against drug-resistant bacteria, ensuring thorough water purification.

Effective UV Disinfection Technology: By targeting the nucleic acids of microorganisms, our UV disinfection process ensures complete sterilization, providing you with consistently safe and clean water.

✅ Eco-Friendly & Chemical-Free Water Treatment:

Pure UV-C Disinfection: Our ultraviolet disinfection lamps provide a clean and sustainable water treatment solution. Because no chemicals are added, you can be confident there are no harmful disinfection by-products like trihalomethanes (THMs) and zero risk of secondary water pollution.

Environmentally Responsible: This chemical-free approach makes our ultraviolet light germicidal lamps an environmentally sound choice, especially for municipal wastewater treatment where minimizing chemical usage is crucial.

✅ Cost-Effective & Energy-Efficient Operation:

Maximize Efficiency, Minimize Costs: The high photoelectric conversion efficiency of our amalgam lamp delivers strong radiation power with fewer lamps needed for the same treatment capacity. This translates directly to lower operational costs for your facility.

Energy Savings: The lamp's low heat generation contributes to significant energy savings over time.

✅ Long-Lasting Performance & Consistent Results:

Extended Lamp Lifespan: Benefit from a long typical lifespan of 13,000 to 16,000 hours. Our special coating technology ensures stable ultraviolet output throughout the lamp's life, reducing the need for frequent maintenance and replacement costs.

Consistent Disinfection You Can Trust: Our system guarantees consistent disinfection performance, unaffected by fluctuations in environmental temperatures.

✅ Built for Versatility & Reliability:

Adaptable to Diverse Environments: Designed for a wide operating temperature range (4-90°C), our system maintains high ultraviolet intensity and reliable disinfection even in challenging environmental conditions.

No Risk of Microbial Resistance: Unlike traditional chemical disinfectants, our amalgam UV lamp does not create microbial resistance, ensuring its long-term effectiveness.

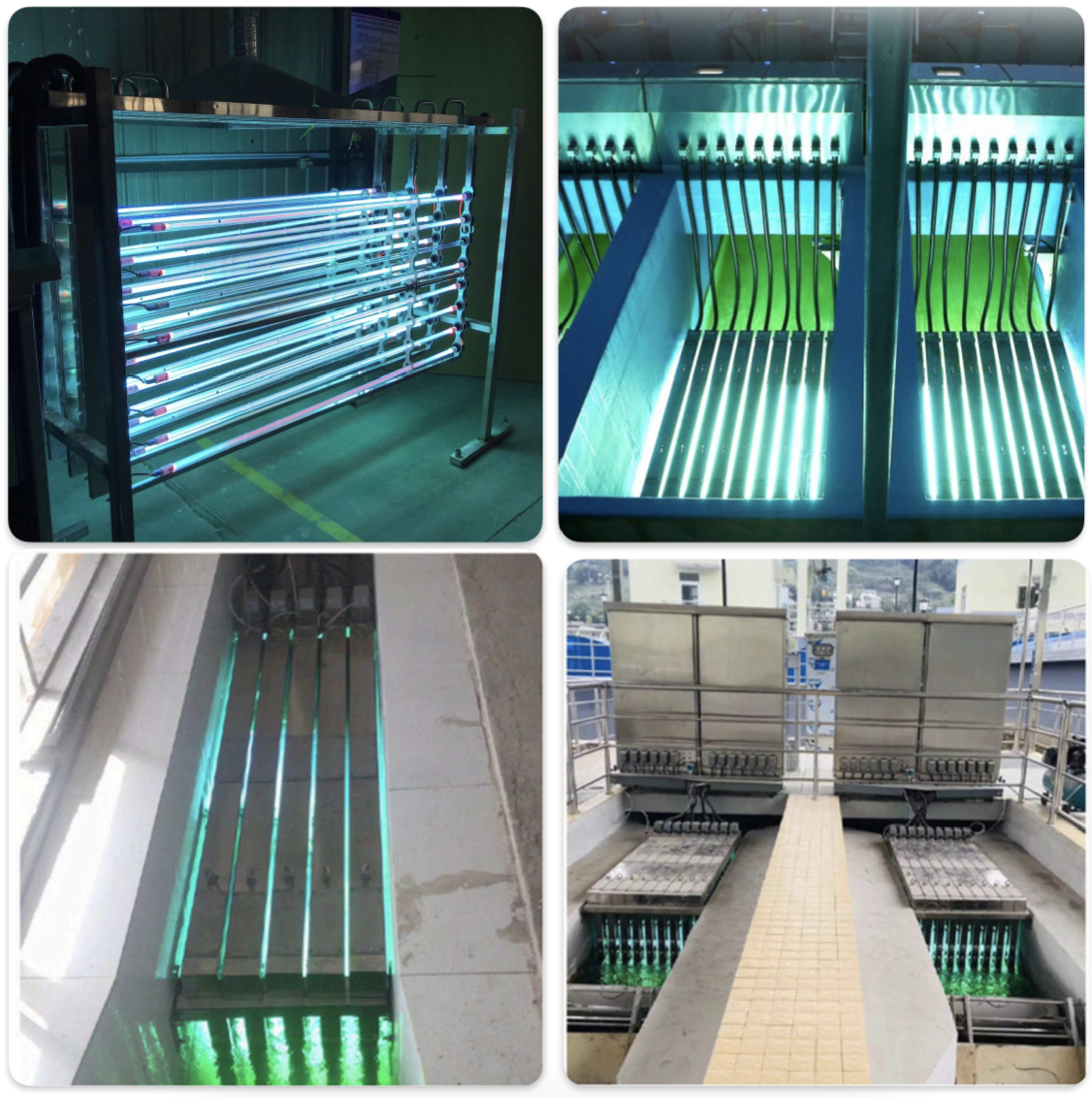

Applications of the 320W High Power Ultraviolet Light Germicidal Lamps:

320W High Power Amalgam UV Lamp for Municipal Wastewater Treatment.png

Large-Scale Wastewater Treatment Plants

Suitable for secondary and tertiary effluent disinfection in large-scale treatment plants, such as replacing the TrojanUVSigna™ system by Trojan Technologies.

Small-Scale Treatment Stations

Can be combined with other treatment technologies (e.g., chemical precipitation, activated carbon adsorption) in small-scale stations to enhance treatment efficiency.
