Instant Start 2*155W Germicidal UV Lamp Ballast Quality Replacement for Aquafine 43474-3
Instant Start 2*155W Germicidal UV Lamp Ballast: Premium Aquafine 43474-3 Replacement for Industrial UV Systems
Uncompromising Power for Critical UV Applications
Engineered for industrial reliability, the PL18-800-2/155 UV Ballast delivers precision power for high-output germicidal systems. As the ultimate Aquafine 43474-3 Replacement, this 345W Electronic UV Ballast drives demanding UV disinfection, and water purification processes with unmatched efficiency and instant-start performance.
Parameters of the 2*155W Germicidal UV Lamp Ballast
| Start Mode | Instant Start |
Operating Voltage Range | 99-264V |
Max Input Power | 345W |
Max Input Current | 1.53A@230V, 3.16A@110V |
Lamp Power | 2*155W UV Lamps |
Lamp Current | 0.75-0.85A |
Operating Frequency | 40-70KHZ |
Power Factor | ≥ 0.98 |
Efficiency | >90% |
Total Harmonic Distortion | <15% |
Crest Factor | <1.7 |
Ambient Humidity | 5%-85% |
Ambient Temperature | -15-40℃ |
Max Case Temperature | 70℃ |
Case Material | Aluminum Shell |
Safety Norm | EN61347-1-2-3, EN62493 |
LVD Norm | Low voltage Directive 2014/35/EU |
EMC Norm | EN55015, EN55014, GB17743, GB17625, EN61000-3-2 |
Certificates | CE/UL/CCC |
Key Features & Industrial Advantages
1> Universal Power & Maximum Efficiency
Global Voltage Support: 99–264V AC (±15%) input with 50/60Hz compatibility
Energy Optimization: >90% conversion efficiency + PF>0.98 (reduces energy costs by 25% vs. legacy ballasts)
True Plug-and-Play: Direct Aquafine 43474-3 Lamp Driver replacement – no rewiring required
2> Instant-Start High-Output Performance
Precision Lamp Control: Powers 2×155W UV lamps (0.75–0.85A) including GPH1554T5HO, TUV64T5HO
Zero Warm-Up Delay: Critical for time-sensitive disinfection/curing workflows
800mA Low Pressure Lamp Driver stability ensures consistent UV intensity
3> Rugged Industrial Design
IP64 Metal Housing: Dustproof/moisture-resistant for harsh environments (water treatment plants, production floors)
UL-Certified Safety: Reinforced wiring & connectors (110mm length)

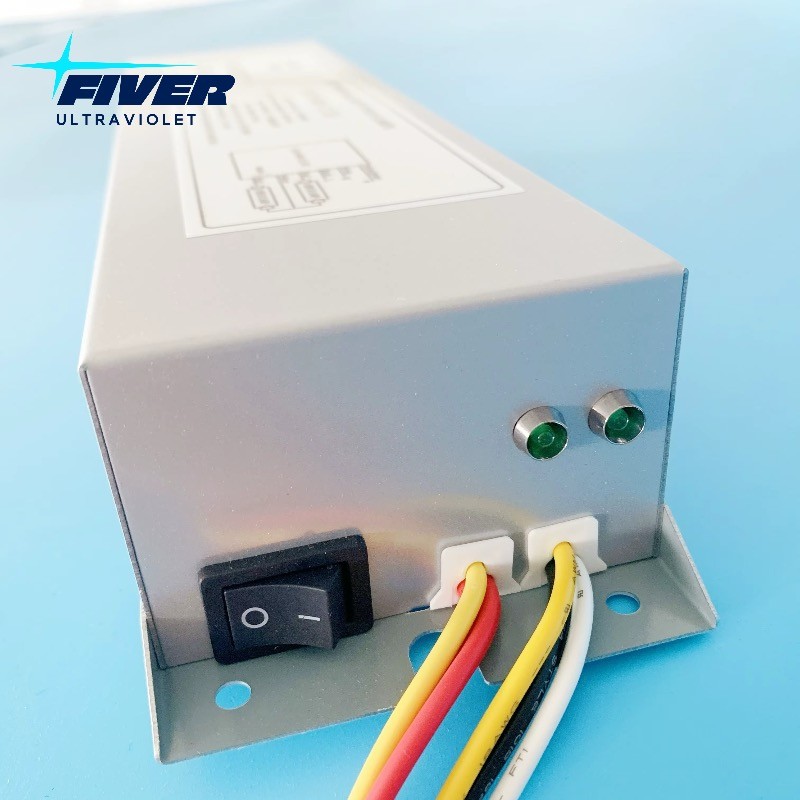

Smart Diagnostics: Built-in power switch + LED indicator (green=operational)
Compatibility & Applications
Direct Replacements: Perfect Aquafine 43474-3 Lamp Driver substitute
System Integration: Compatible with OptiVenn, Optima, HX & CSL UV Systems
Lamp Support: GHO64T5, TUV64T5HO, and all 800mA low-pressure UV lamps
Ideal For:
Municipal water treatment plants
Hospital-grade disinfection systems
