2X335W 1.75-3.85A Amalgam UV Lamps Ballast for Philips TUV Dynapower System

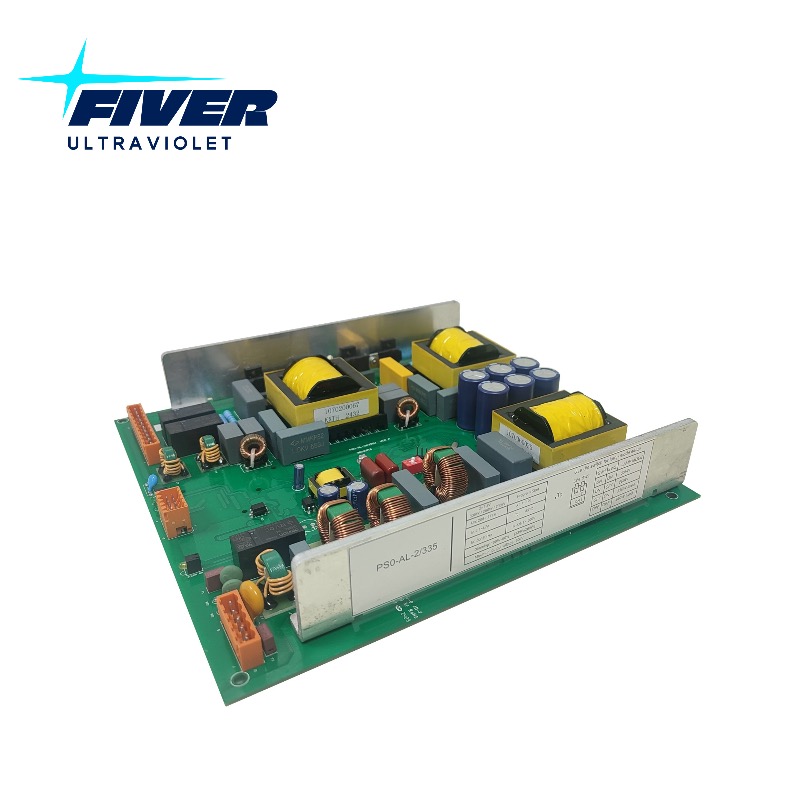

2X335W Electronic Ballast for Amalgam UV Lamps (1.75-3.85A)
Premium Replacement for Philips DynaPower Driver – Industrial UV Ballast Solution
Looking for a reliable and cost-effective Philips DynaPower® Driver replacement? Our 2X335W electronic ballast is the definitive solution for high-demand industrial water treatment systems. Specifically engineered to seamlessly integrate with TUV Dynapower systems, this ballast provides a high-performance alternative to the original Philips Dynapower 913713229695 Replacement, offering identical functionality and superior efficiency.
Unlike standard drivers, our intelligent amalgam lamp ballast is powered by a state-of-the-art microprocessor, giving you granular control over your UV disinfection process. It is meticulously designed to operate two low-pressure TUV 260W, 335W, or 230W amalgam lamps, making it a versatile and powerful choice for various applications
Features of Fiver's 2*335W Amalgam Lamp Ballast:
1> Intelligent Microprocessor Control: At the core of this UV driver for TUV Dynapower system is an integrated microprocessor that ensures precise and stable operation. This allows for independent control and powering of two lamps, significantly enhancing system redundancy and reliability.
2> Plug-and-Play Compatibility: This ballast is a true drop-in Wedeco EVG 55-II ballast alternative, eliminating the need for complex system modifications. Simply set the dip-switch to match your specific TUV lamp type for a quick and effortless upgrade.
3> Superior Efficiency & Power: Achieve more with less. Our ballast operates at a high frequency (>40 kHz) with an impressive power factor > 98% and an electrical efficiency > 92%. This translates directly into lower energy costs and a more sustainable operation.
4> Flexible Variable Power Control: Optimize your UV dose and energy consumption. The ballast supports variable power control via a 4-20mA signal, allowing you to modulate the lamp power from 60% to 100% (with a 10-20mA operating range for TUV 260W/335W lamps).
5> Built-in Reliability: This ballast is designed for continuous, industrial use. It features a programmed 22-second preheating time to protect lamp electrodes and an automatic re-start function that ensures your system is always operational by re-igniting any lamp that fails to light.
Parameters of the Dynapower 913713229695 Replacement
| Start Mode | Preheat Start |
Operating Voltage Range | 198/264V |
Max Input Power | 721W |
Max Input Current | 3.16A @ 230V |
Lamp Power | 230W/260W/335W |
Lamp Current | 1.75-3.85A |
Operating Frequency | 40HZ |
Power Factor | ≥ 0.99 |
Efficiency | >92% |
Total Harmonic Distortion | <10% |
Crest Factor | <1.7 |
Ambient Humidity | 5%-85% |
Ambient Temperature | -15-40℃ |
Max Case Temperature | 70℃ |
Case Material | Aluminum Shell |
Safety Norm | EN61347-1-2-3, EN62493 |

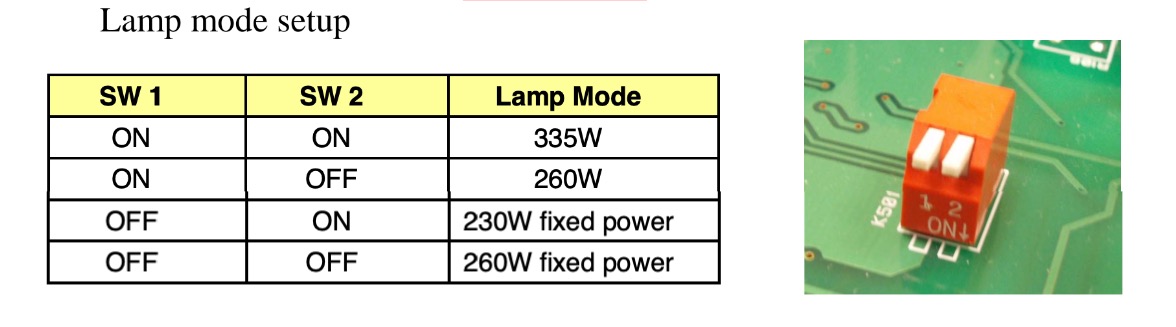

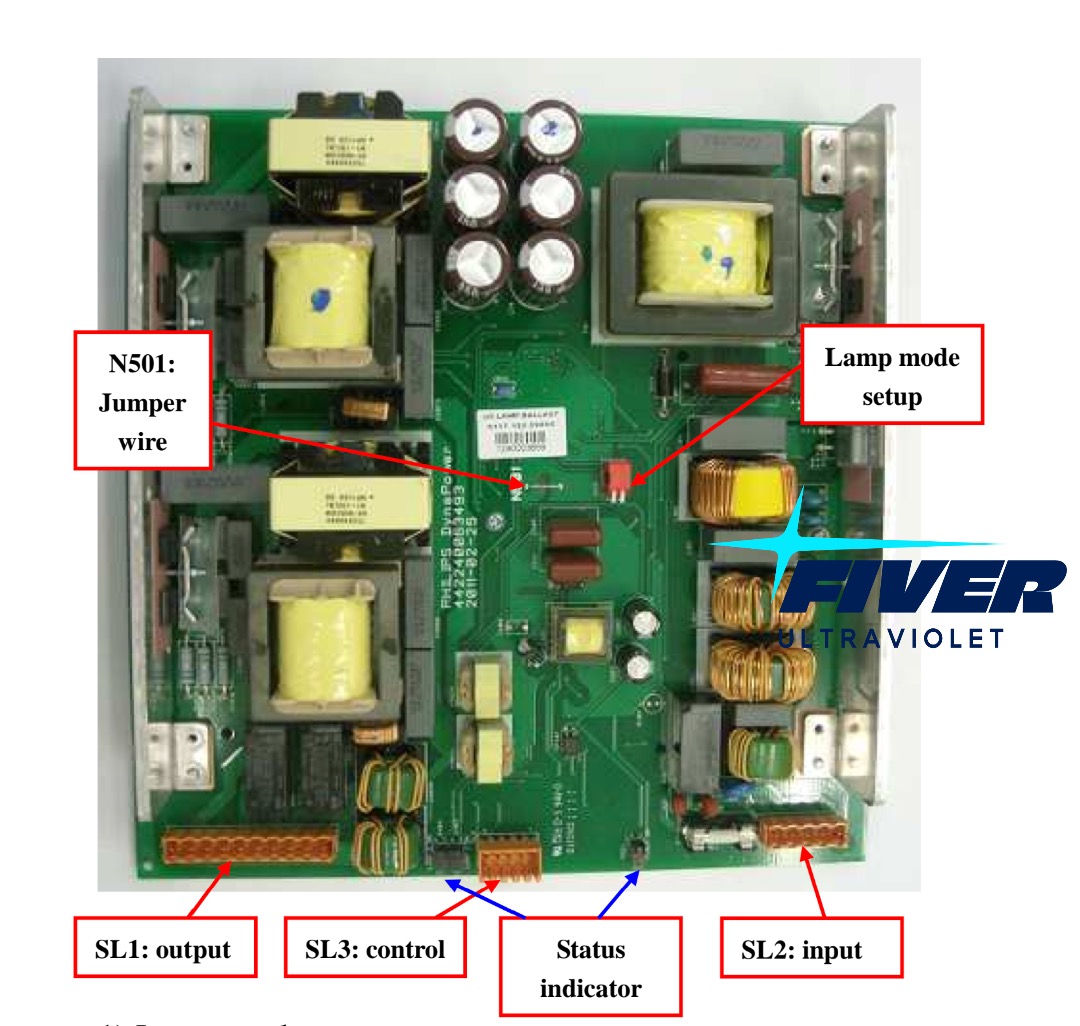

Setup Description & Lamp Mode Configuration
( For details please contact our sales team for manual)
Applications for This Philips DynaPower Driver Replacement
----Water Treatment: Ideal for municipal drinking water, wastewater, and industrial process water.
----Air Sterilization: Perfect for HVAC UVGI systems in hospitals, labs, and food processing facilities.
----Surface Disinfection: Ensures effective sterilization in food packaging lines and pharmaceutical cleanrooms.
