3000W UV Light Ballast Replacing Nedap 9559221 PWM Dimming
3000W UV Light Ballast - High-Performance Replacement for Nedap 9559221
Engineered for Industrial UV Disinfection & Curing Systems
Unlock Cost-Effective, Stable Power for Mission-Critical UV Applications
In high-stakes industrial environments—from water treatment plants to automotive coating lines—UV system failures mean costly downtime. When your Nedap UV lamp drivers falter, replacing them with OEM units often comes with steep pricing and lead times. Introducing the industrial-grade 3000W ballast for UV lamp systems: a precision-engineered, drop-in replacement for the Nedap 9559221 power supply that delivers superior stability, intelligent control, and 40% lower operating costs.
Product Features of Fiver's UV Light Ballast
1> Nedap-Compatible Design:Enables true plug-and-play replacement of 9559221 units with enhanced power stability—no chamber retrofits or control rewiring needed.
2> Intelligent Power Management: Unlike generic ballasts, this 3000W UV light ballast features microprocessor-controlled PWM dimming (400-3000W) with real-time feedback loops. This enables:
Optimal UV Dose Control: Adjust output to match conveyor speeds or fluid flow rates, preventing under/over-exposure.
Energy Savings: 95% efficiency reduces power waste by 450+ kWh/month versus magnetic ballasts.
Lamp Longevity: Preheat startup eliminates cold-strike stress, extending amalgam lamp life by 30%.
3> Industrial-Grade Reliability: Designed for 24/7 operation in harsh environments like printing presses or wastewater facilities. Fan-cooled aluminum housing resists dust, humidity, and chemical splash.
Parameters for FIver's Nedap 9559221 Power Supply Replacement
| Start Mode | Instant Start |
Operating Voltage Range | 198-264 |
Max Input Power | 3200W |
Max Input Current | 14A @ 230V |
Lamp Power | 400W-3000W |
Lamp Current | 9A Max |
Operating Frequency | 40-70KHZ |
Power Factor | ≥ 0.99 |
Efficiency | >95% |
Total Harmonic Distortion | <10% |
Crest Factor | <1.7 |
Ambient Humidity | 5%-85% |
Ambient Temperature | -15-40℃ |
Max Case Temperature | 70℃ |
Case Material | Aluminum Shell |
Safety Norm | EN61347-1-2-3, EN62493 |
Key Applications OF This UV Light Ballast
-Industrial UV Curing Systems
Replace Nedap UV lamp drivers in printing/coating lines. Precise dimming ensures perfect ink polymerization without heat damage.
-Water Treatment Disinfection
Maintain ±3% power stability for constant UV-C output in municipal or pharmaceutical water systems—critical for pathogen log-reduction compliance.
-Surface Sterilization Tunnels
High 3000W output supports rapid conveyorized disinfection of medical equipment or food packaging.
-Nedap 9559221 Power Supply Retrofits
Extend the lifespan of TrojanUV, Xylem, or Hanovia systems by replacing obsolete Nedap 9559221 power supply units at 50% lower cost.

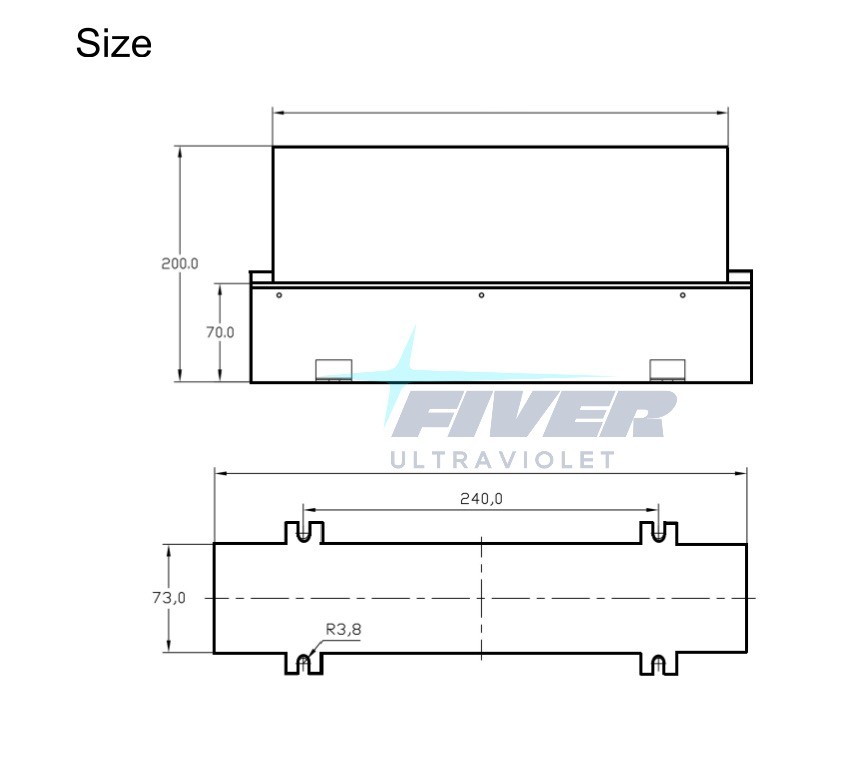

Dimension & Control Port Description:

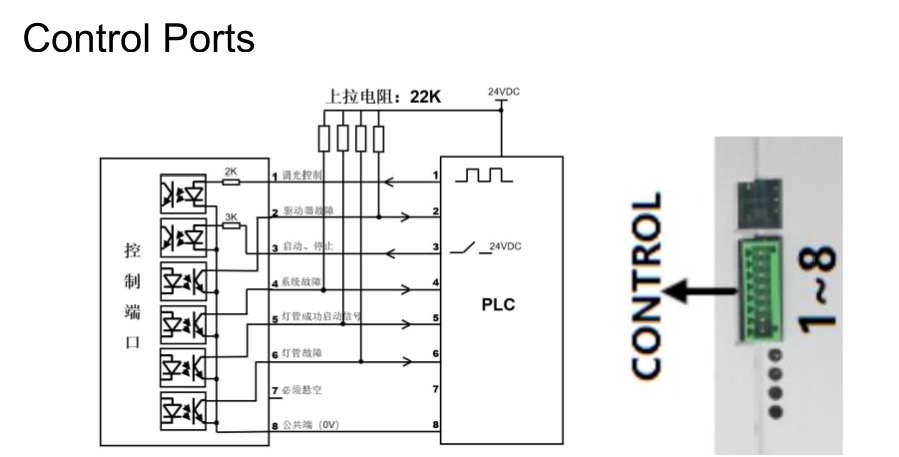

Description of CONTROL Port
Pin | Name | Type | ||
1 | Dimming Control | 1–4kHz, %pwm (0, <1V; 1, 24V) | Input | Duty Cycle Dimming |
2 | Driver Fault | Open Collector | Output | Low Level Indicates Fault |
3 | Start/Stop | High/Low Level (0, <1V; 1, 24V) | Input | High Level for Start, Low Level for Stop |
4 | System Fault | Open Collector | Output | Low Level Indicates Fault |
5 | Tube Successful Startup Signal | Open Collector | Output | Low Level Indicates Successful Startup |
6 | Tube Fault | Open Collector | Output | Low Level Indicates Fault |
7 | Must Be Left Floating | |||
8 | Common Terminal (0V) |
