IP64 High Efficency 320W Electronic UV Ballast Replacement for Alfa Laval 270104006
Direct Replacement Alfa 270104006 Ballast
Precision Power for Critical UV Operations

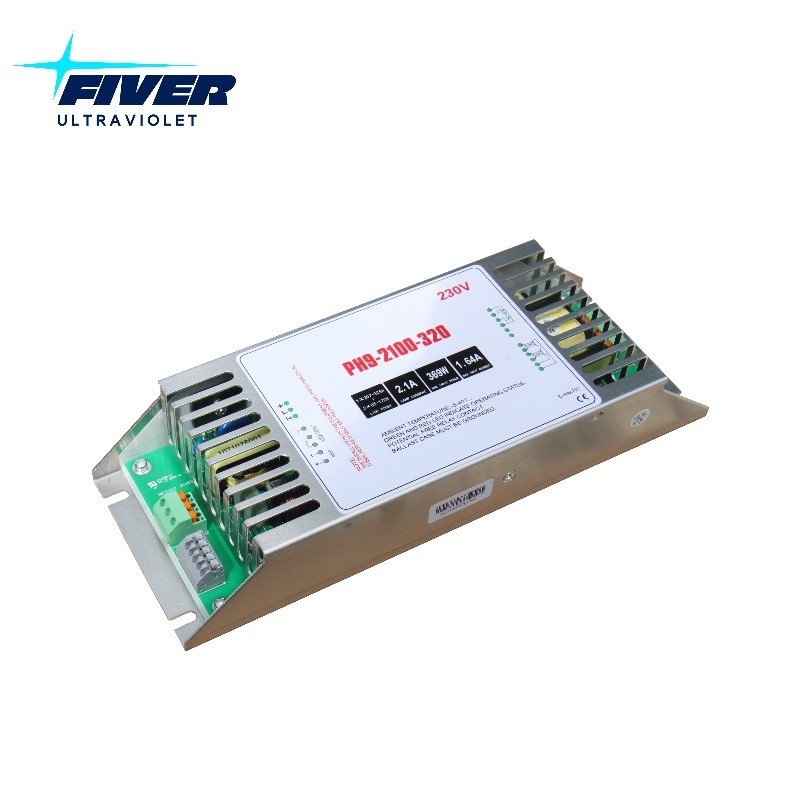

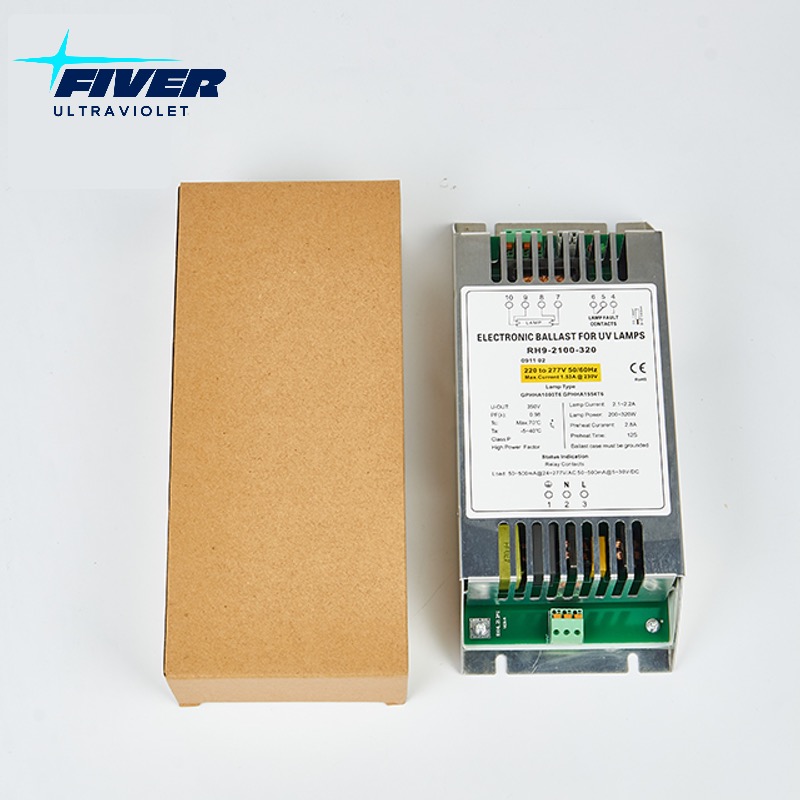

Engineered as the ultimate direct replacement for Alfa 270104006, the PH9-2100-320 electronic ballast delivers unmatched reliability for industrial UV applications. With 90%+ energy efficiency and instant-start technology, this high-performance unit ensures zero downtime in water treatment, UV curing, and sterilization systems.
Parameters of the 320W UV Lamp Ballast
| Start Mode | Preheat Start |
Operating Voltage Range | 198-264 |
Max Input Power | 369W |
Max Input Current | 1.64A @ 230V |
Lamp Power | 320W Amalgam UV Lamp |
Lamp Current | 1.95-2.25A |
Operating Frequency | 40-70KHZ |
Preheat Time | 7-9 S |
Preheat Current | 2.5-3.1A |
Power Factor | ≥ 0.98 |
Efficiency | >90% |
Total Harmonic Distortion | <15% |
Crest Factor | <1.7 |
Ambient Humidity | 5%-85% |
Ambient Temperature | -15-40℃ |
Max Case Temperature | 70℃ |
Case Material | Aluminum Shell |
Safety Norm | EN61347-1-2-3, EN62493 |
LVD Norm | Low voltage Directive 2014/35/EU |
EMC Norm | EN55015, EN55014, GB17743, GB17625, EN61000-3-2 |
Certificates | CE/UL/CCC |
Key Advantages of Fiver's Alfa Laval 270104006 Replacement
Seamless Alfa 270104006 Replacement
Plug-and-Play Installation: Direct retrofit for Alfa 270104006 systems – no wiring modifications
Global Voltage Compliance: 99-264V AC (±15%) input for worldwide deployment
Energy Savings: >90% efficiency + PF>0.98 (30% lower operating costs vs. magnetic ballasts)
Preheat-Start
Preheat start, suitable for applications of frequent on/off switching.
High-Output Support: Drives UV lamps at 0.75-0.85A (compatible with GHO64T5/TUV64T5HO)
Industrial-Grade Durability

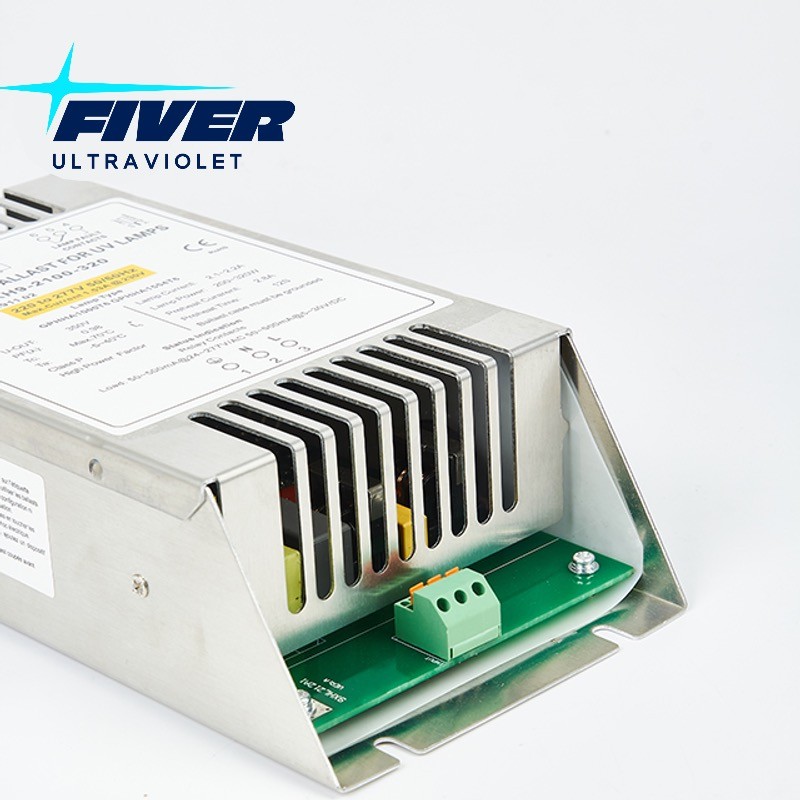

IP64 Metal Housing: Dustproof/moisture-resistant for water treatment plants & harsh facilities
UL-Certified Safety: Reinforced wiring (110mm) and thermal overload protection
Smart Diagnostics: LED status indicator (green = operational) for maintenance alerts
Compatibility & Applications
Direct Replacement For: Alfa laval 270104006 Electronic ballasts
Ideal Systems:
Water disinfection (municipal/industrial)
Ballast water treatment
Surface sterilization (food processing/medical)
Lamp Compatibility: All 1.95–2.25A UV lamps including TUV HO series
Safety & Installation
Critical Note:
Always disconnect power before installation
Verify lamp compatibility (1.95–2.25A)
Mount vertically in ventilated areas (max ambient: 40°C)
