BSKY Ballast Water Treatment System | UV Lamp & Quartz Sleeve Replacement Solution
BSKY’s EPT technology abandons chemical or electrolytic processes and relies on a synergistic combination of three physical treatment modules, creating a closed-loop, pollution-free treatment chain:
Features of BSKY Ballast Water Treatment System

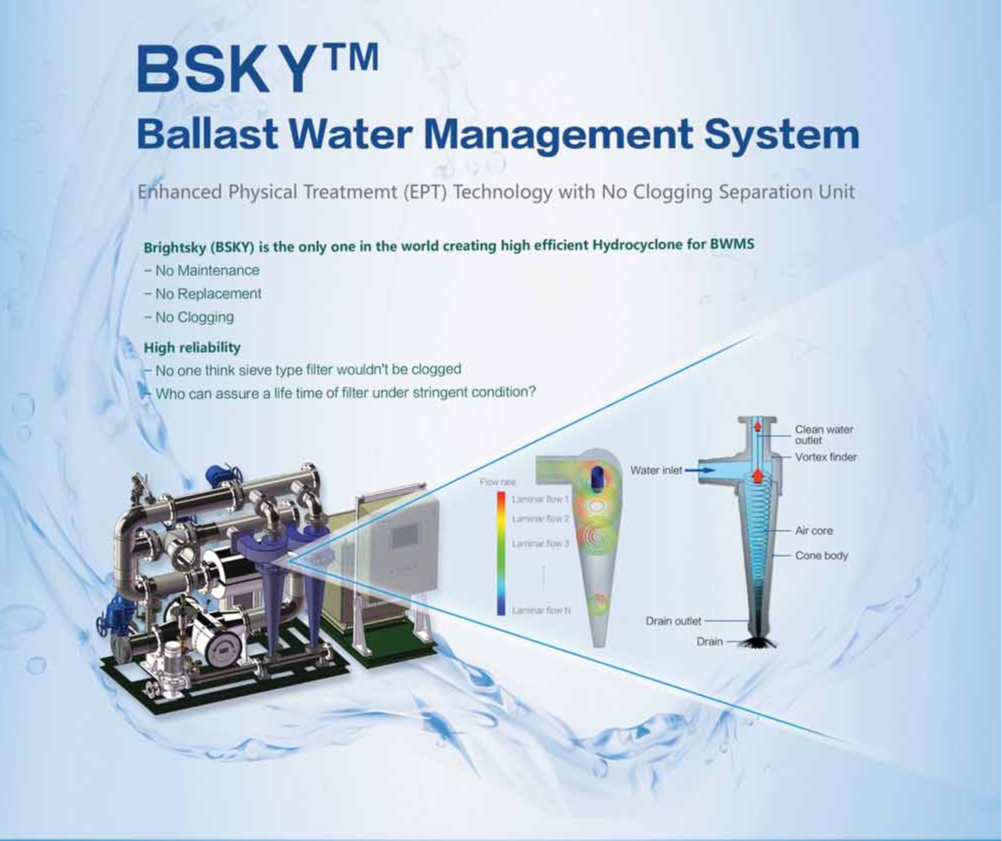

Hydrocyclone Separation Unit: The world’s first high-efficiency hydrocyclone designed for BWMS, replacing traditional sieve filters (20-50μm) that are prone to clogging. This mesh-free unit achieves 98% removal of ≥50μm particles and 95% removal of 20-50μm microbes/solids with no moving parts, no maintenance, and a pressure loss of ≤0.6 Bar. It can be installed at a 45° tilt, maximizing the use of limited engine room space—solving the shipowners’ biggest pain point of filter clogging caused by marine filaments, mud, and sand.
Ultrasonic (US) Pre-Treatment Module: Utilizes cavitation effects (1900-5200K high temperature, 500+atm high pressure) to break down biological cell walls, degrade organic pollutants, and purify water quality. As the "perfect companion" to UV disinfection, it expands the applicable UV transmittance (UVT) range and ensures subsequent UV sterilization efficiency.
Intelligent UV Disinfection Module: Equipped with medium-pressure UV lamps featuring a wide radiation spectrum and high energy intensity. The module adopts real-time UV dose tracing technology, with strictly calibrated UV sensors and abrasion-resistant quartz sleeve wipers that adjust lamp output according to water quality changes—ensuring optimal energy efficiency and prolonging lamp life. The new generation UV reactor has a 1.45x higher RED energy effect than previous models, passing both USCG and IMO New G8 type tests with excellent results.
BSKY BWMS vs. Traditional BWMS: A Clear Competitive Edge
Traditional ballast water treatment technologies (Filter+Electrolysis, Filter+Chemical, Filter+Inert Gas, even basic Filter+UV) all have inherent flaws that compromise operational efficiency and cost-effectiveness. The table below highlights BSKY’s unique advantages:
| Technology Type | Key Disadvantages | BSKY EPT Technology Advantages |
|---|---|---|
| Filter+Electrolysis/Catalysis | Freshwater inapplicable, chemical byproducts, explosion risks, high electrode replacement costs | 100% physical treatment, no secondary pollution, suitable for all salinity conditions |
| Filter+Inert Gas Deoxidation | Membrane clogging, hull pressure stress, complex gas pipe installation | Mesh-free hydrocyclone, no structural stress on the ship, modular distributed installation |
| Filter+Chemical Method | Chemical storage/handling, expensive TRO reagents, troublesome residue treatment | No chemicals required, no special storage, zero operational risks |
| Basic Filter+UV | Frequent filter replacement, high pressure loss, fixed UV output (energy waste) | No filter maintenance, intelligent UV dose tracking, 30%+ lower energy consumption |
Reliable UV Lamp & Quartz Sleeve Replacements for BSKY BWMS
High compatibility with BSKY’s medium-pressure UV system, ensuring consistent radiation intensity and dose.
Durable construction that withstands the harsh marine environment (high humidity, corrosion).
Precision-matched quartz sleeves with high UV transmittance and scratch resistance, paired with BSKY’s mechanical wiper system to maintain long-term disinfection efficiency.
Global Certification & Real-World Validation
BSKY BWMS holds a full set of international certifications, including IMO, USCG (AMS), CCS, DNV·GL, ABS, LR, BV, and KR, and has been installed on 396 vessels worldwide (177 new builds, 77 retrofits) across bulk carriers, container ships, LPG/LEG carriers, and tankers. Its modular design and 3D scanning reverse engineering technology make retrofit installation fast and precise, with no occupation of the ship’s bottom space—ideal for both new and existing vessels.
Why Choose BSKY BWMS?
No clogging: Hydrocyclone technology eliminates the biggest pain point of traditional filters.
Eco-friendly: 100% physical treatment, no chemical additives or secondary pollution.
Cost-effective: Ultra-low maintenance and operational costs, high return on investment.
Intelligent: BSKY_CON controller with one-click operation, multi-language display (CN/EN/JP/KR), and 5-year data storage.
Global support: A worldwide service network covering Asia, Europe, North America, and the Middle East, with on-site installation, training, and regular maintenance.
BSKY BWMS is not just a ballast water treatment system—it’s a sustainable solution for the shipping industry to meet international environmental regulations while reducing operational costs. Paired with our quality & cost effective OEM UV lamp and quartz sleeve replacements, your BSKY system will deliver reliable, long-term performance for every voyage.
Want to learn more about how to replace the UV lamp & quartz sleeve replacement for BSKY BWMS?
