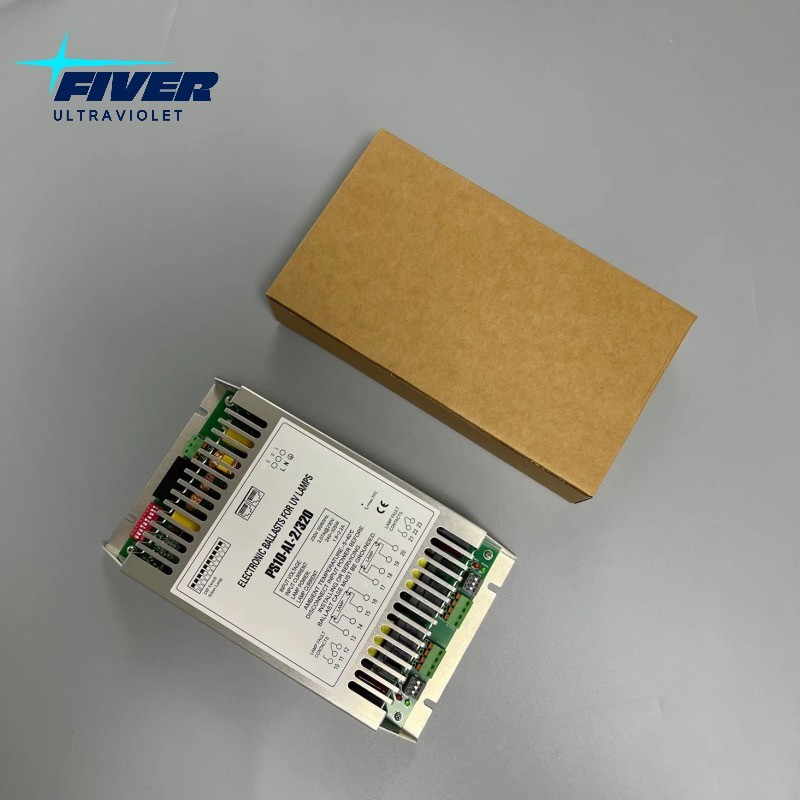

230V Program Start Dimmable Electronic Ballast for 2*320W Amalgam Lamps

Preheat Start
Electronic ballast for 2*320W amalgam UV lamp operation.
Loading lamps set via dip switch.
With LED indicators showing the lamp status, green for
working, red for fault. with dry contact function.
RS485 communication. Control the on/off, adjust the
output power of the electronic uv ballast, monitor the working
status of the amalgam uv lamps via RS485 protocol.widely
used in the industrial waste water treatment.

Loading Lamps: GPHA1554T6, GPHHA1000T6, GPHHA1554T6
NN

INQUIRY

Product Details

Product Tags

230V Program Start Dimmable Electronic Ballast for 2*320W Amalgam Lamps

Product Parameters for 2*320W Dimmable UV Ballast

Start Mode	Preheat Start
Operating Voltage Range	198-264
Max Input Power	692W
Max Input Current	3.07A @ 230V
Lamp Power	2*320W Amalgam UV Lamp
Lamp Current	1.8-2.1A( Adjustable via DIP Switch)
Pre heat Current	2.0-3.0A( Adjustable via DIP Switch)
Pre heat Time	8-12S ( Adjustable via DIP Switch)
Operating Frequency	40-70KHZ
Power Factor	≥ 0.98
Efficiency	>90%
Total Harmonic Distortion	<15%
Crest Factor	<1.7
Ambient Humidity	5%-85%
Ambient Temperature	-15-40℃
Max Case Temperature	70℃
Case Material	Aluminum Shell
Safety Norm	EN61347-1-2-3, EN62493
LVD Norm	Low voltage Directive 2014/35/EU
EMC Norm	EN55015, EN55014, GB17743, GB17625, EN61000-3-2
Certificates	CE/UL/CCC

Product Features for this 2*320W Dimmable UV Lamp Ballast

1. Compatibility, this dimmable electronic ballast is is designed to work specifically with 2*320W amalgam UV lamps, ensuring optimal performance and longevity. widely used in industrial waste water treatment.

2. With DIP switch function, output current, preheat current and preheat time switchable via DIP.

3. This ballast uv light with dimmable function. The on/off, adjust output power of the uv ballast, monito working status of the lamp achived via the RS485 protocols.

4. Energy efficiency. this dimmable uv lamp ballast with high energy efficiency up to 90%. minimizing power consumption while still providing sufficient voltage for the lamp's operation.

5. All-round protections. this uv light ballast replacement with all-round protective mechanisms such as short-circuit protection, overcurrent protection, or overload protection to ensure safe and reliable operation of the system.

6. Longevity and reliability. This T6 two lamp ballast built with durable components and designed for long-term use in demanding environments, ensuring reliability and extended lifespan of both the ballast itself and the connected uv lamps.
