UV Ballast Manufacturer Offer 55 Watt UV Ballast for Water Purification
UV Ballast Manufacturer Offer 55 Watt UV Ballast for Water Purification
Product Specifications for this 55W Ultraviolet Ballast
Operating Voltage Range | 198-264 |
Max Input Power | 60W |
Max Input Current | 0.28A @ 230V |
Lamp Power | 1*Lamp: 10-55W |
Lamp Current | 0.75-0.85A |
Operating Frequency | 50-70KHZ |
Preheat Time | 1.0-2.0 S |
Preheat Current | 0.7-0.9A |
Power Factor | ≥ 0.92 |
Efficiency | >90% |
Total Harmonic Distortion | <15% |
Crest Factor | <1.7 |
Ambient Humidity | 5%-85% |
Ambient Temperature | -15-40℃ |
Max Case Temperature | 70℃ |
Case Material | Aluminum Shell |
Safety Norm | EN61347-1-2-3, EN62493 |
LVD Norm | Low voltage Directive 2014/35/EU |
EMC Norm | EN55015, EN55014, GB17743, GB17625, EN61000-3-2 |
Certificates | CE/UL/CCC |
Product Features of this 55w Electronic UV Ballast
1> This Electronic ultraviolet ballast, is energy efficient. which saves the user money by minimizing energy waste.
2> Compact size and weight: Electronic ballasts are smaller and lighter than magnetic ballasts.
3> Continuous power adjustment: This electronic uv ballast replacement can continuously adjust power at different settings.
4> Quieter operation: Electronic ballasts are quieter than magnetic ballasts,
5> More stable operation: Electronic ballasts provide more stable operation
6> Longer service life: Electronic ballasts provide a longer service life

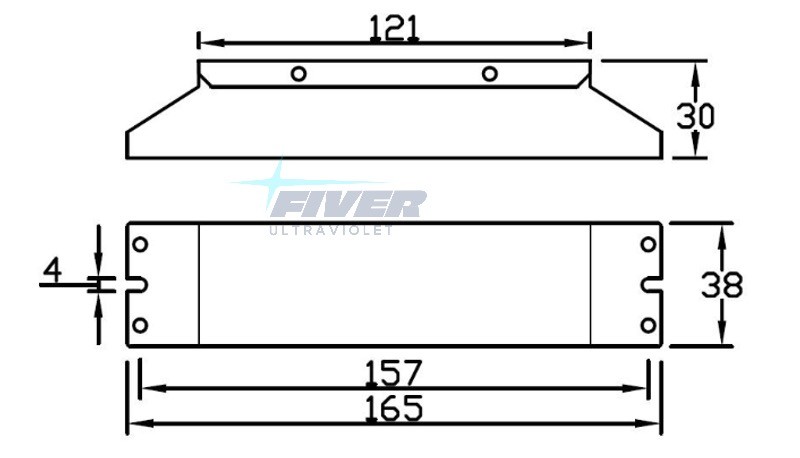

Dimension for this 55w uv ballast
Size: 165*38*30mm Carton Size: 460*270*190mm( 75PCS load)
Wiring Diagram for this uv ballast replacement
Load lamps: TUV55W, G55T8, GPH436T5HO, GPL35WHO,GPH357T5HO
Cautions:
1. Please make sure the power is off when you install or maintain the ballast
2. The distance between ballast and lamp tube should no longer than 5M.
3. The suggested wire specific: diameter 0.5-1mm, wire stripping 0.8-1mm
4. The aluminum shell should be grounded.
