110V/230V HIGH POWER FACTOR 36W BALLAST FOR UV STERILIZER
110V/230V High Power Factor 36W Ballast for UV Sterilizer
Product Parameters for ballast for uv sterilizer
Operating Voltage Range | 99-264 |
Max Input Power | 47W |
Max Input Current | 0.21A @ 230V 0.42@120V |
Lamp Power | 1*Lamp: 10-41W; 2*Lamps: 10-21W |
Lamp Current | 0.38-0.43A |
Operating Frequency | 50-70KHZ |
Preheat Time | 1.0-2.0 S |
Preheat Current | 0.4-0.5A |
Power Factor | ≥ 0.98 |
Efficiency | >90% |
Total Harmonic Distortion | <15% |
Crest Factor | <1.7 |
Ambient Humidity | 5%-85% |
Ambient Temperature | -15-40℃ |
Max Case Temperature | 70℃ |
Case Material | Aluminum Shell |
Safety Norm | EN61347-1-2-3, EN62493 |
LVD Norm | Low voltage Directive 2014/35/EU |
EMC Norm | EN55015, EN55014, GB17743, GB17625, EN61000-3-2 |
Certificates | CE/UL/CCC |
Features of the uv electronic ballast
1> Wide input voltage range: 99-264V ac, can be used for different countries with different electricity voltage.
2> With Pre-heat strat function, suitable for frequent start & stop applications. long service life up to 50000 switching cycles.
3> Energy saving, By using electronic circuittry to control the power supply, these ballast minimize erngery wastage consuming 30% less comparing to traditional magnetic ballasts.
4> Stable and efficient disinfection. due to their ability to provide precise control over the uv lamps' output
5> Prolong germicidal uv light lifespan, reduce opertation cost. The precise regulation of power supply helps to extend the lifespan of the
uv lamps, reducing the frequency of replacements and maintenance.
6> This 42W ultraviolet ballast with status indication via 5V DC signal output indicator. DC Output: 5V Lamps on,DC Output: 0V Lamps failure
Compatible uv lights and lamps:
10V/230V High Power Factor 36W Ballast for UV Sterilizer have two wiring method:
Wiring A 1*lamp operation: GPH843T5,GPH793T5,GPH550T5,GPH436T5,G36T5,TUV36T5, TUVPL-L36W,TUV36W
Wiring B 2*lamps operation: GPH150T6, GPH212T5,GPH287T5,GPH303T5, GPH436T5, TUV11W, TUV16W
Dimension of this 2*18W Electronic Ballast UV Lamp
Size:135*60*30mm Carton Size: 460*270*190mm(60PCS Load)
Mounting hole spacing: 125mm

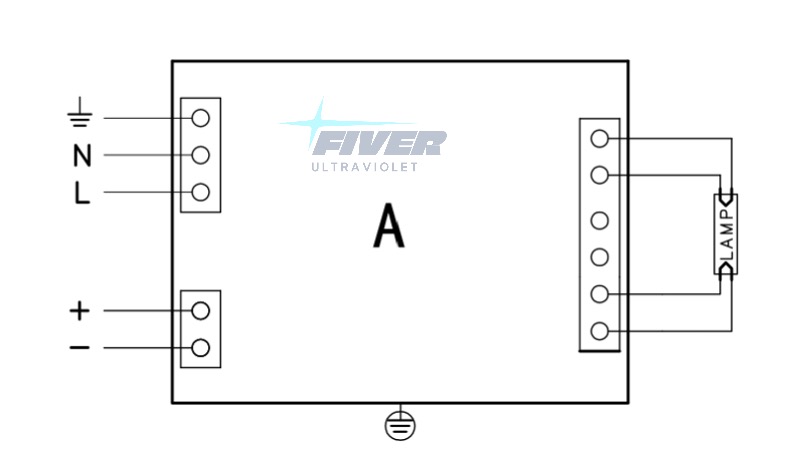

Wiring Diagram for this ultraviolet light ballast
Load Lamp: 1 Lamp: GPH843T5,GPH793T5,GPH550T5,GPH436T5,G36T5,TUV36T5, TUVPL-L36W,TUV36W Diagram A
2 *Lamps: GPH150T6, GPH212T5,GPH287T5,GPH303T5, GPH436T5, TUV11W, TUV16W Diagram B
Cautions:
1. Please make sure the power is off when you install or maintain the ballast
2. The distance between ballast and lamp tube should no longer than 5M.
3. The suggested wire specific: diameter 0.5-1mm, wire stripping 0.8-1mm
4. The aluminum shell should be grounded.
Applications:
Some Questions About Our Ultroviolet Ballasts You Might Concern.
Q1: What is the Warranty for Your uv lamp electronic ballast ?
A1: Our warranty for Electronic UV Ballast is 12,000 Hours or 2 to 5 years depending on the models.
Q2: Can I get samples before place orders?
A2: Yes, we offer samples for our customers to test before bulk orders, the sample charge will be refunded once you place an order.
that means you are getting a free sample.
Q3: How you ship the order to our Country?
A3: For sample or small orders, express will be best shipping method, such as DHL, TNT, FEDEX.
For bulk orders (more than 100kg), you can choose air freight, sea cargo or by Railway.
Q4: How to pay?
A4: 1. For sample/small orders 100%TT in advance. or by Paypal or Western Union
